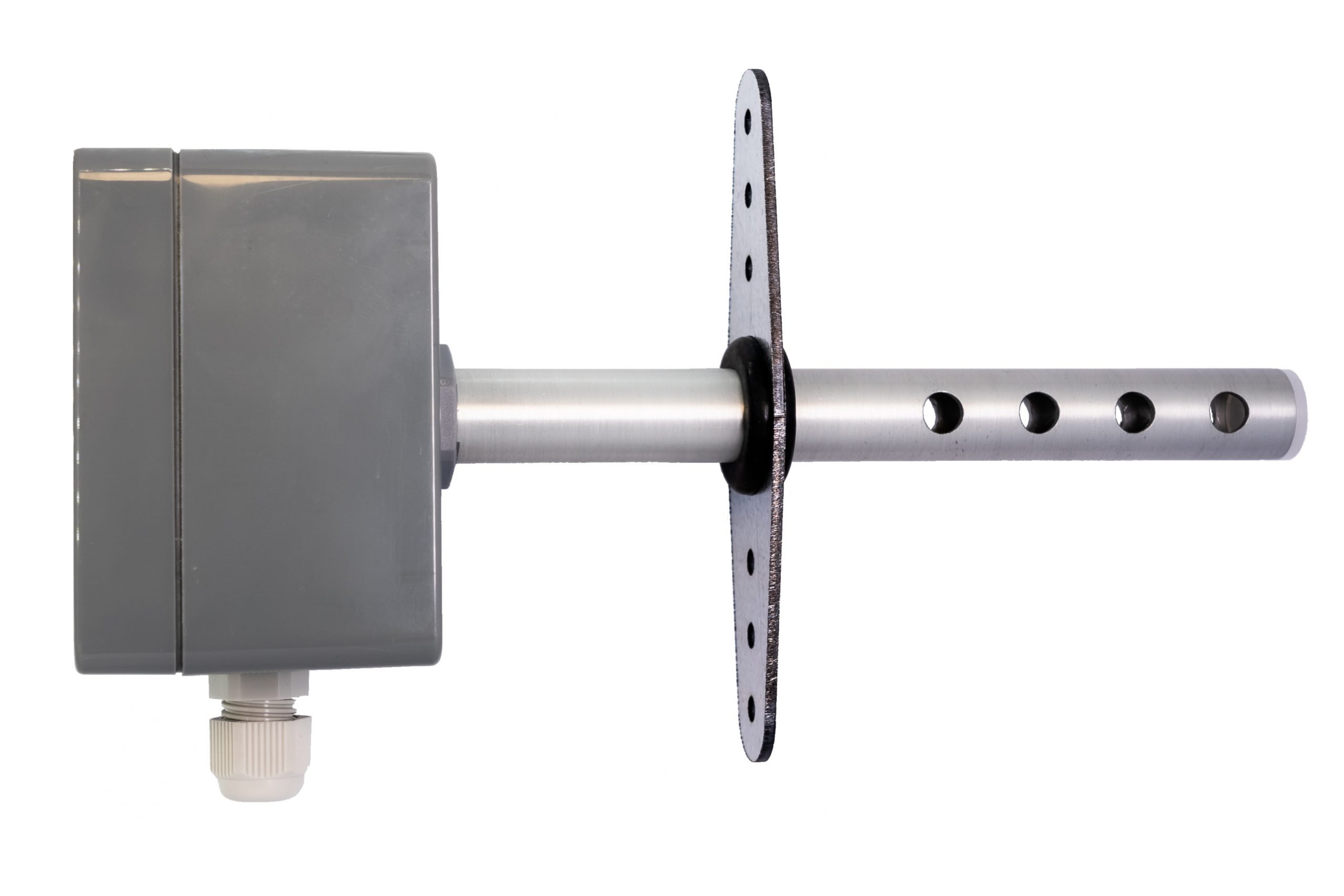

SQD VOC/RH/°C sensor

Simna SCD is a duct mounted 3 in 1 device - 3 sensors (VOC, %RH, °C) with 3 interfaces (Modbus, 0..10V/4..20mA, relay).

SKU: SQD Category:

Our solution benefits:

  • 3 sensors in one device (VOC, %RH, °C)
  • 2 selectable type analog outputs (0..10 V / 4..20 mA)
  • Relay output for on/off control
  • RS-485 Modbus interface
  • PID functionality for VAV, fan or heater control
  • IP65 ingress protection class
  • Sensors – VOC %, Relative humidity %RH, Air temperature °C
  • Analog outputs – 2x, 0..10V or 4..20mA selectable
  • Digital protocol- RS-485 Modbus
  • Supply voltage – 24Vac / 24Vdc
  • Protection class – IP65
  • Depth of insertion – 80..150mm
  • Duct mount flange – 118x20mm
  • Dimensions – 82x80x54 mm
