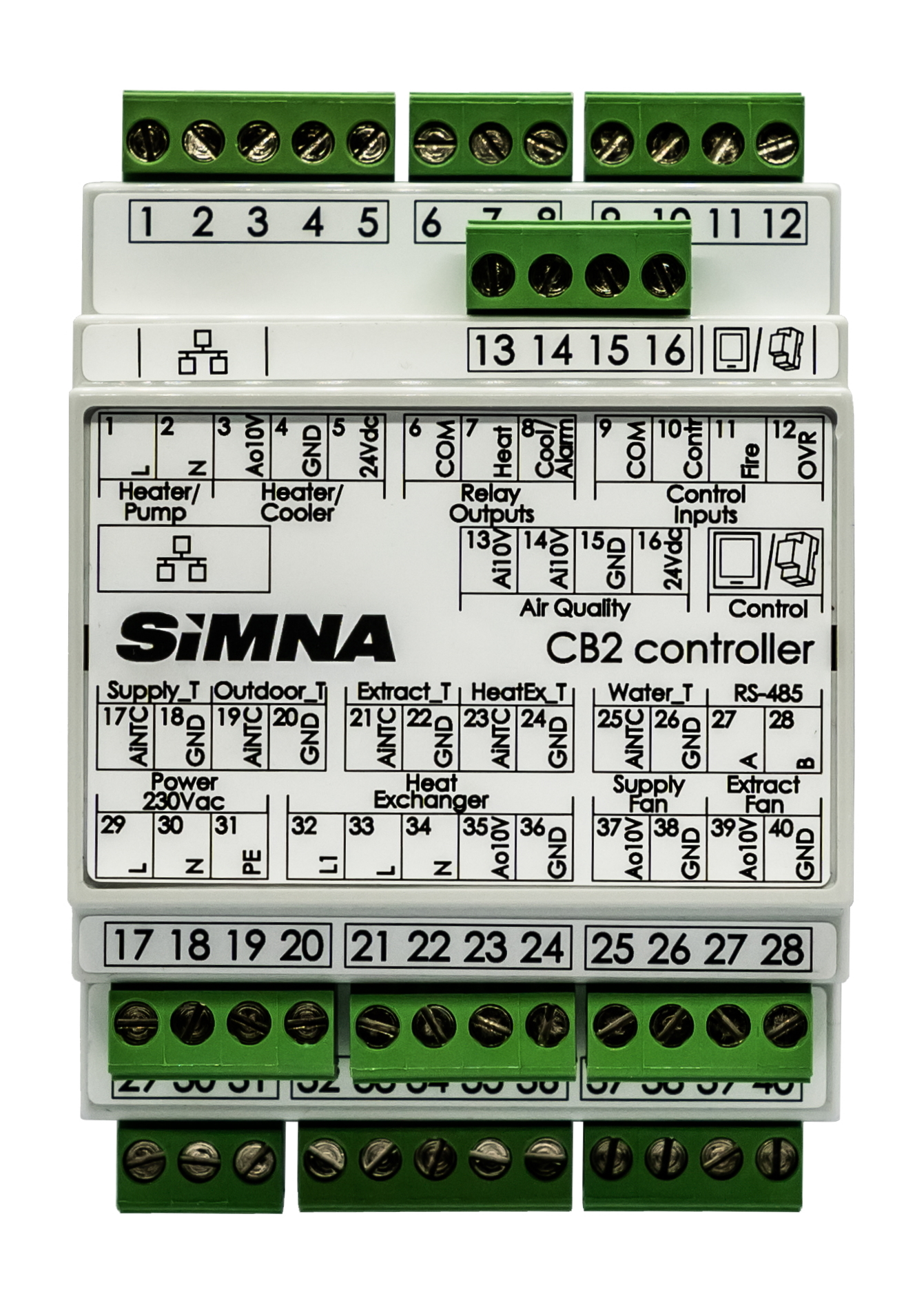

CB2 controller

Simna CB2 is a controller designed for air handling units (AHU) and supports various system configurations. AHU can either be with or without heat exchanger, have a recirculation section and be single or double air flow with direct or constant air volume (CAV) control using EB-S extension module integrated or external pressure sensors. Additional I/O and functionality can be expanded by extension modules.
All functionality is pre-programmed and ready to use. Only simple configuration is required using integrated web server menu.

SKU: CB2 Category:

CB2 controller is designed for convenient and energy efficient regulation of the air handling unit (AHU).

Our solution benefits:

  • Pre-programmed AHU controller
  • Energy saving functionality
  • Colour 3,5” touch panel PT-B2
  • Integrated web server
  • BMS protocols
  • I/O expansion with modules
  • Integrated power supply
  • Connectors – 2.5mm2 spring terminals
  • Analog inputs – 2, 0..10V
  • Temperature inputs – 5, NTC 10k
  • Digital inputs – 3, internal pull-up
  • Analog outputs – 4, 0..10V
  • Digital relay outputs – 2, 230Vac 2A
  • Triac outputs – 2
  • Control panel – 1, RJ45 4P4C
  • Ethernet – 1, RJ45 8P8C
  • Supply voltage – 230Vac
  • Protection class – IP20
  • Dimensions – 103x70x58 mm
