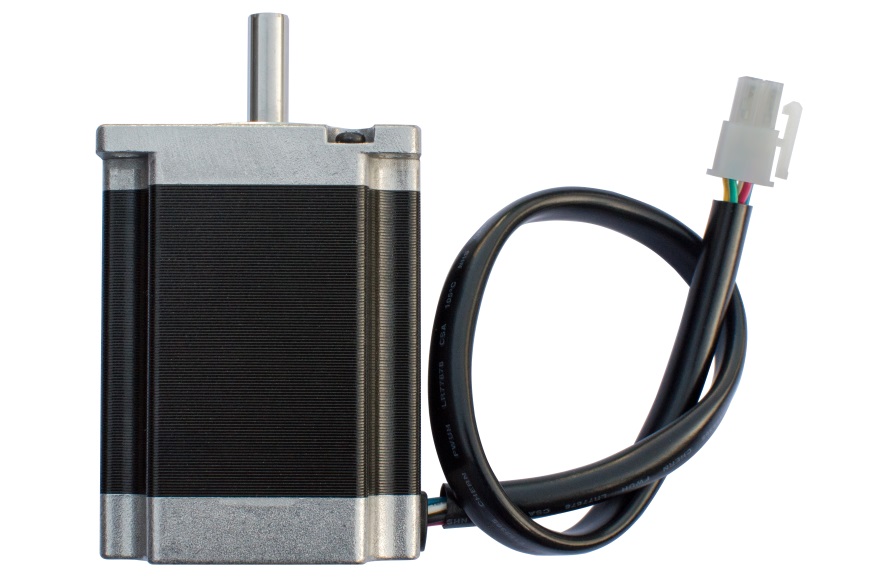

FL57STH76 motor
FL57STH76 motor main application is to drive air handling unit (AHU) rotary heat exchanger.
Our solution benefits:
- Efficient and quite operation
- Flat torque curve in wide operation area
- Long life and maintenance free operation
- Wiring harness ready to connect
- Threaded mounting holes
- Heat exchanger – up to 600mm diameter
- Shaft speed – up 180 RPM
- Rated torque – 0.9 Nm
- Dimensions – 56x56x100 mm
- Shaft – 6.3mm, 20mm length
- Wire – 30cm, 4.2mm VAL-U-LOK connector
